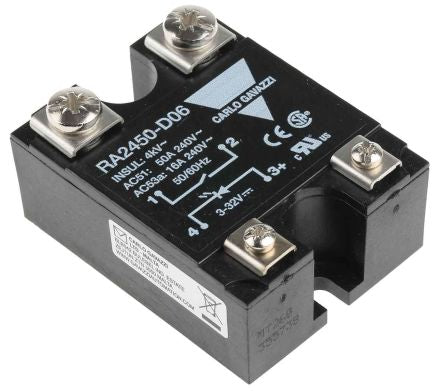

Carlo Gavazzi 50 A Solid State Relay, Zero, Panel Mount, 280 V ac Maximum Load [RA2450-D06]; 856-8371
0₫
Mã kho: 8568371
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 250 mA |
| Maximum Load Current | 50 A |
| Mounting Type | Panel Mount |
| Minimum Load Voltage | 24 V ac |
| Maximum Load Voltage | 280 V ac |
| Minimum Control Voltage | 3 V dc |
| Maximum Control Voltage | 32 V dc |
| Switching Type | Zero |
| Terminal Type | Screw |
| Maximum Turn On Time | 1 s |
| Dimensions | 44.5 x 57.8 x 24.5mm |
| Operating Temperature Range | -20 → +70°C |
| Off State Leakage Current | ≤3 mA |
| Length | 44.5mm |
| Height | 24.5mm |
| Depth | 57.8mm |
| Control Voltage Range | 3 → 32 V dc |
| Load Voltage Range | 24 → 280V ac |
