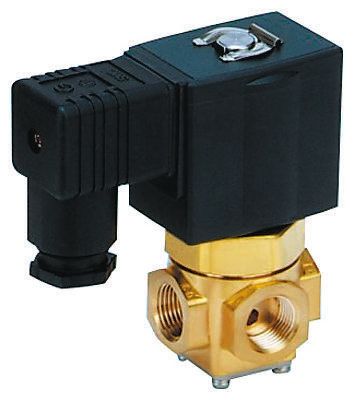

SMC Solenoid Valve VX3334A-02F-5DO1, 3 port , Common, 24 V dc, 1/4in [VX3334A-02F-5DO1]; 701-3378
by SMC
0₫
Mã kho: 7013378
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Supply Voltage | 24 V dc |
Number of Ports | 3 |
Operation | Direct |
Connection | 1/4 in G Female |
Connection Size | 1/4in |
Default Valve Position | Common |
Suitable Applications | Oil |
Type | 43892 |
Orifice Diameter | 3mm |
Body Material | Brass |
Maximum Working Pressure | 1 MPa |
Operating Temperature Range | -20 → +60 °C |
Minimum Operating Temperature | -20°C |
Maximum Operating Temperature | +60°C |
Connection Gender | Female |
Thread Standard or Connection Type | G |
Series | VX33 |
