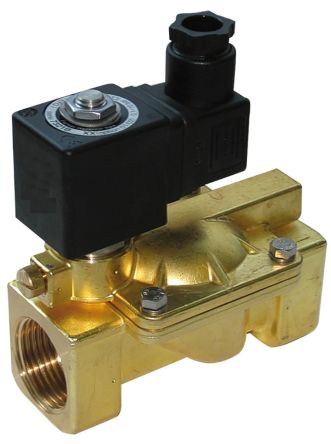

Parker Solenoid Valve 550197DIS, 2 port , NC, 24 V dc, 3/4in [550197DIS]; 125-4080
by Parker
0₫
Mã kho: 1254080
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 24 V dc |
| Number of Ports | 2 |
| Operation | Pilot |
| Connection | 3/4 in BSP Female |
| Connection Size | 3/4in |
| Default Valve Position | NC |
| Suitable Applications | Water |
| Type | 43863 |
| Orifice Diameter | 20mm |
| Body Material | Brass |
| Maximum Working Pressure | 10 bar |
| Operating Temperature Range | -10 → +90 °C |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | +90°C |
| Connection Gender | Female |
| Flow Factor Kv | 8.4m³/h |
| Hazardous Area Certification | IECEx |
| Thread Standard or Connection Type | BSP |
