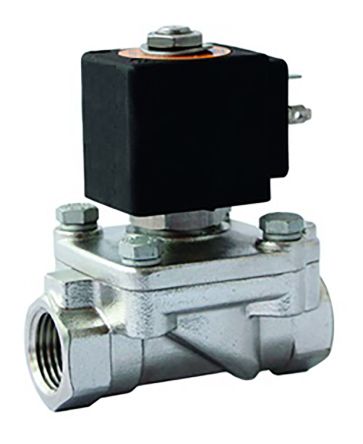

Parker Solenoid Valve 221G6106-2995-4818653D, 2 port , NC, 230 V ac, 1in [221G6106-2995-4818653D]; 125-4091
by Parker
0₫
Mã kho: 1254091
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 230 V ac |
| Number of Ports | 2 |
| Operation | Solenoid |
| Connection | 1 in BSP Female |
| Connection Size | 1in |
| Default Valve Position | NC |
| Suitable Applications | Air, Oil, Water |
| Type | 43863 |
| Orifice Diameter | 25mm |
| Body Material | Stainless Steel |
| Maximum Working Pressure | 16 bar |
| Operating Temperature Range | 0 → +100 °C |
| Minimum Operating Temperature | 0°C |
| Maximum Operating Temperature | +100°C |
| Connection Gender | Female |
| Hazardous Area Certification | ATEX |
| Thread Standard or Connection Type | BSP |
| Flow Factor Kv | 9.6m³/h |
