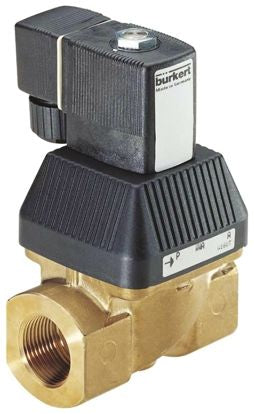

Burkert Solenoid Valve 93970011, 2 port , NC, 110 V ac, 1/2in [93970011]; 804-1949
by Burkert
0₫
Mã kho: 8041949
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 110 V ac |
| Number of Ports | 2 |
| Operation | Pilot |
| Connection | 1/2 in G Female |
| Connection Size | 1/2in |
| Default Valve Position | NC |
| Suitable Applications | Air, Gas, Vacuum Applications |
| Type | 43863 |
| Orifice Diameter | 13mm |
| Body Material | Brass, Nickel Plated Brass, Stainless Steel |
| Maximum Working Pressure | 10 bar |
| Operating Temperature Range | -30 → +100 Epoxy Coil (EPDM) °C, -30 → +90 Polyamide Coil (EPDM) °C, -10 → +80 (NBR) °C, 0 → +120 Epoxy Coil (FKM) °C, 0 → +90 Polyamide Coil (FKM) °C |
| Minimum Operating Temperature | -30 °C, -10 °C, 0 °C |
| Maximum Operating Temperature | +80 °C, +90 °C, +100 °C, +120 °C |
| Series | 221 |
| Maximum Opening Time | 4s |
| Connection Gender | Female |
| Servo Assist | Yes |
| Maximum Closing Time | 4s |
| Thread Standard or Connection Type | G |
