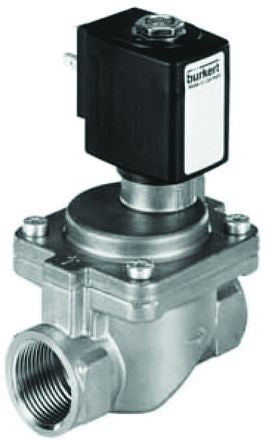

Burkert Solenoid Valve 93970140, 2 port , NC, 24 V dc, 1/2in [221989]; 816-3253
by Burkert
0₫
Mã kho: 8163253
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 24 V dc |
| Number of Ports | 2 |
| Operation | Pilot |
| Connection | 1/2 in G |
| Connection Size | 1/2in |
| Default Valve Position | NC |
| Suitable Applications | Hot Air, Pre-Solution |
| Type | 43863 |
| Orifice Diameter | 13mm |
| Body Material | Stainless Steel |
| Maximum Working Pressure | 16 bar |
| Operating Temperature Range | 0 → +120 °C |
| Minimum Operating Temperature | 0°C |
| Maximum Operating Temperature | +120°C |
| Servo Assist | Yes |
| Connection Gender | Female |
| Flow Factor Kv | 3.8m³/h |
| Thread Standard or Connection Type | G |
| Series | 6281 EV Standard |
| Maximum Closing Time | 0.1 → 4s |
