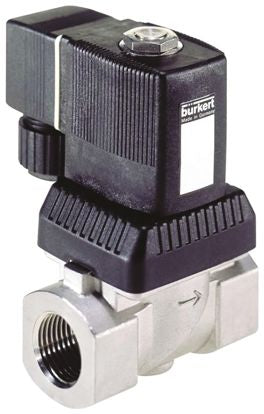

Burkert Solenoid Valve 93970034, 2 port , NC, 24 V, 3/8in [221758]; 804-2027
by Burkert
0₫
Mã kho: 8042027
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 24 V |
| Number of Ports | 2 |
| Operation | Pilot |
| Connection | 3/8 in G Female |
| Connection Size | 3/8in |
| Default Valve Position | NC |
| Suitable Applications | Liquid |
| Type | 43863 |
| Orifice Diameter | 10mm |
| Body Material | Stainless Steel |
| Maximum Working Pressure | 10 bar |
| Operating Temperature Range | 0 → +120 °C |
| Minimum Operating Temperature | 0°C |
| Maximum Operating Temperature | +120°C |
| Thread Standard or Connection Type | G |
| Flow Factor Kv | 1.9m³/h |
| Connection Gender | Female |
| Series | 221 |
| Servo Assist | Yes |
