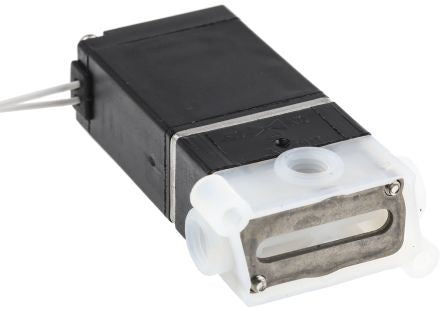

Burkert Solenoid Valve 137779, 3 port , Common, 24 V dc, 1/8in [137779]; 388-5090
by Burkert
0₫
Mã kho: 3885090
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 24 V dc |
| Number of Ports | 3 |
| Operation | Direct |
| Connection | 1/4 in UNF Female |
| Connection Size | 1/8in |
| Default Valve Position | Common |
| Suitable Applications | Aggressive Gas, Aggressive Liquid |
| Type | 43892 |
| Orifice Diameter | 1.5mm |
| Body Material | ETFE |
| Maximum Working Pressure | 2 bar |
| Operating Temperature Range | 0 → +55 °C |
| Minimum Operating Temperature | 0°C |
| Maximum Operating Temperature | +55°C |
| Series | 6606 |
| Maximum Opening Time | 25ms |
| Connection Gender | Female |
| Thread Standard or Connection Type | UNF |
| Maximum Closing Time | 25ms |
| Flow Factor Kv | 0.025m³/h |
