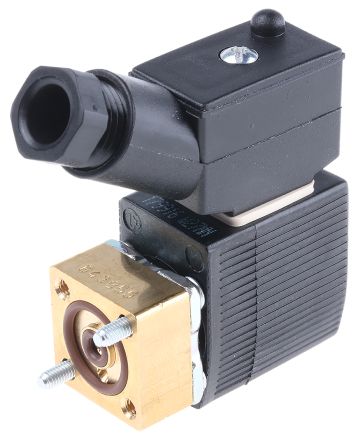

Burkert Solenoid Valve 134115, 2 port , NC, 24 V dc [134115]; 313-1977
by Burkert
0₫
Mã kho: 3131977
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 24 V dc |
| Number of Ports | 2 |
| Operation | Direct |
| Default Valve Position | NC |
| Suitable Applications | Liquid, Neutral Gas, Technical Vacuum |
| Type | 43863 |
| Orifice Diameter | 1.2mm |
| Body Material | Brass |
| Maximum Working Pressure | 12 bar |
| Operating Temperature Range | -10 → +55 °C |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | +55°C |
| Maximum Opening Time | 10ms |
| Series | 6011 |
| Maximum Closing Time | 15ms |
| Flow Factor Kv | 0.045m³/h |
