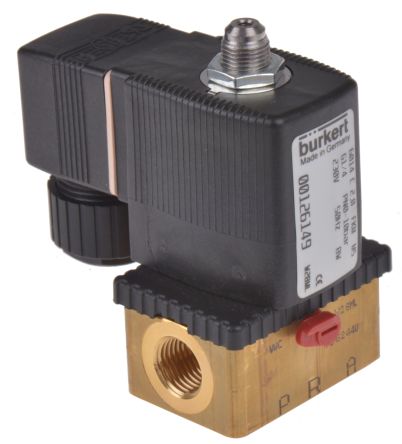

Burkert Solenoid Valve 126149, 3 port , NC, 230 V ac, 1/4in [126149]; 306-9816
by Burkert
0₫
Mã kho: 3069816
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 230 V ac |
| Number of Ports | 3 |
| Operation | Direct |
| Connection | 1/4 in G Female |
| Connection Size | 1/4in |
| Default Valve Position | NC |
| Suitable Applications | Gas, Liquid |
| Type | 43892 |
| Orifice Diameter | 2mm |
| Body Material | Brass |
| Maximum Working Pressure | 10 bar |
| Operating Temperature Range | -10 → +55 °C |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | +55°C |
| Maximum Opening Time | 15ms |
| Connection Gender | Female |
| Maximum Closing Time | 20ms |
| Thread Standard or Connection Type | G |
| Flow Factor Kv | 0.11m³/h |
| Series | 6014 |
