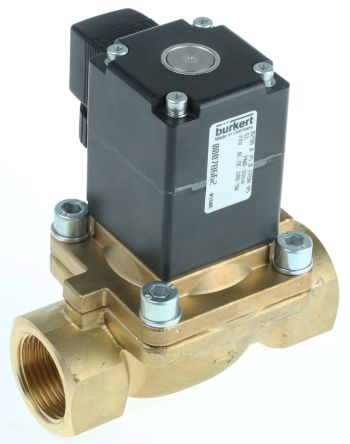

Burkert Solenoid Valve 078662, 2 port , NC, 24 V ac/dc, 1in [078662]; 440-701
by Burkert
0₫
Mã kho: 440701
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 24 V ac/dc |
| Number of Ports | 2 |
| Operation | Pilot |
| Connection | 1 in G Female |
| Connection Size | 1in |
| Default Valve Position | NC |
| Suitable Applications | Gas, Liquid |
| Type | 43863 |
| Orifice Diameter | 25mm |
| Body Material | Brass |
| Maximum Working Pressure | 16 bar |
| Operating Temperature Range | Maximum of +55 °C |
| Maximum Operating Temperature | +55°C |
| Servo Assist | Yes |
| Thread Standard or Connection Type | G |
| Connection Gender | Female |
| Flow Factor Kv | 10m³/h |
| Series | 290 |
