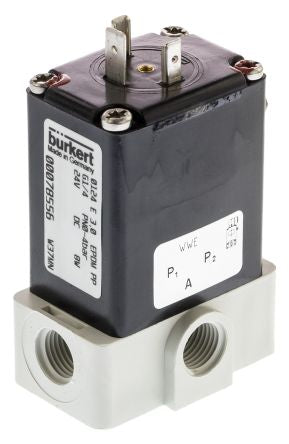

Burkert Solenoid Valve 078556, 3 port , NO/NC, 24 V dc, 1/4in [078556]; 440-789
by Burkert
0₫
Mã kho: 440789
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 24 V dc |
| Number of Ports | 3 |
| Operation | Direct |
| Connection | 1/4 in G Female |
| Connection Size | 1/4in |
| Default Valve Position | NO/NC |
| Suitable Applications | Aggressive Media |
| Type | 43892 |
| Orifice Diameter | 3mm |
| Body Material | PP |
| Maximum Working Pressure | 4 bar |
| Operating Temperature Range | Maximum of +55 °C |
| Maximum Operating Temperature | +55°C |
| Maximum Closing Time | 20ms |
| Thread Standard or Connection Type | G |
| Flow Factor Kv | 0.25m³/h |
| Connection Gender | Female |
| Maximum Opening Time | 20ms |
| Series | 124 |
