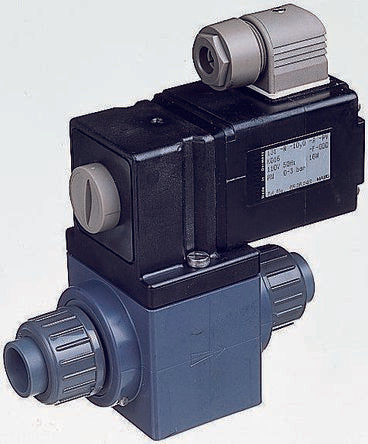

Burkert Solenoid Valve 051549, 2 port , NC, 240 V ac, 16mm [051549]; 184-5898
by Burkert
0₫
Mã kho: 1845898
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 240 V ac |
| Number of Ports | 2 |
| Operation | Direct |
| Connection | M16 Metric Female |
| Connection Size | 16mm |
| Default Valve Position | NC |
| Suitable Applications | Aggressive Gas, Aggressive Liquid |
| Type | 43863 |
| Orifice Diameter | 10mm |
| Body Material | PVC |
| Maximum Working Pressure | 3 bar |
| Operating Temperature Range | Maximum of +50 °C |
| Maximum Operating Temperature | +50°C |
| Connection Gender | Female |
| Thread Standard or Connection Type | Metric |
| Flow Factor Kv | 2m³/h |
| Series | 131 |
