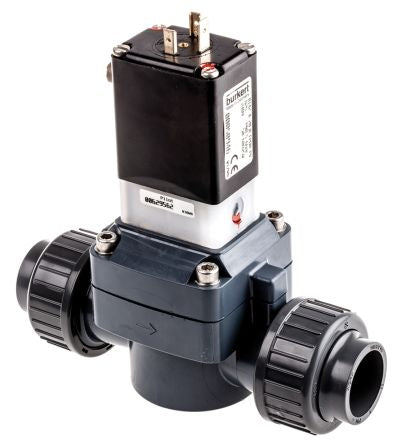

Burkert Solenoid Valve 050946, 2 port , NC, 240 V ac, 3/4in [050946]; 249-0663
by Burkert
0₫
Mã kho: 2490663
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 240 V ac |
| Number of Ports | 2 |
| Operation | Pilot |
| Connection | Cable Plug |
| Connection Size | 3/4in |
| Default Valve Position | NC |
| Suitable Applications | Aggressive Gas, Aggressive Liquid |
| Type | 43863 |
| Orifice Diameter | 20mm |
| Body Material | PVC |
| Maximum Working Pressure | 6 bar |
| Operating Temperature Range | 0 → +40 °C |
| Minimum Operating Temperature | 0°C |
| Maximum Operating Temperature | +40°C |
| Connection Gender | Female |
| Flow Factor Kv | 14m³/h |
| Thread Standard or Connection Type | True Union |
| Maximum Opening Time | 800ms |
| Series | 142 |
| Maximum Closing Time | 4000ms |
