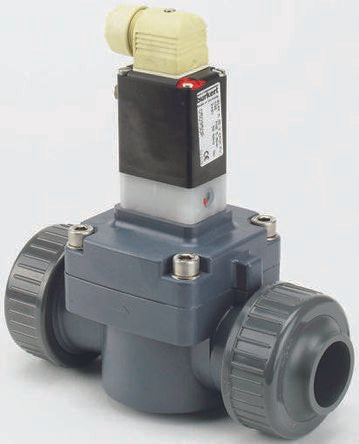

Burkert Solenoid Valve 050929, 2 port , NC, 240 V ac, 1/2in [050929]; 249-0635
by Burkert
0₫
Mã kho: 2490635
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 240 V ac |
| Number of Ports | 2 |
| Operation | Pilot |
| Connection Size | 1/2in |
| Default Valve Position | NC |
| Suitable Applications | Aggressive Gas, Aggressive Liquid |
| Type | 43863 |
| Orifice Diameter | 15mm |
| Body Material | PVC |
| Maximum Working Pressure | 6 bar |
| Operating Temperature Range | 0 → +40 °C |
| Minimum Operating Temperature | 0°C |
| Maximum Operating Temperature | +40°C |
| Series | 142 |
| Connection Gender | Female |
| Flow Factor Kv | 6m³/h |
