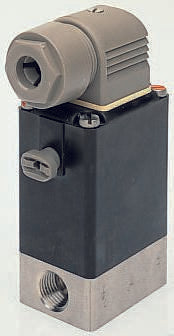

Burkert Solenoid Valve 021373, 3 port , NO/NC, 110 V ac, 1/4in [021373]; 440-751
by Burkert
0₫
Mã kho: 440751
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 110 V ac |
| Number of Ports | 3 |
| Operation | Direct |
| Connection | 1/4 in G Female |
| Connection Size | 1/4in |
| Default Valve Position | NO/NC |
| Suitable Applications | Aggressive Gas, Aggressive Liquid |
| Type | 43892 |
| Orifice Diameter | 3mm |
| Body Material | Stainless Steel |
| Maximum Working Pressure | 6 bar |
| Operating Temperature Range | -30 → +55 °C |
| Minimum Operating Temperature | -30°C |
| Maximum Operating Temperature | +55°C |
| Connection Gender | Female |
| Series | 330 |
| Flow Factor Kv | 0.23m³/h |
| Thread Standard or Connection Type | G |
