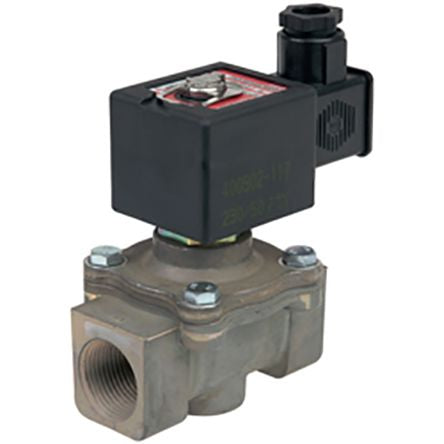

Asco Solenoid Valve E040B002E7A8A02, 2 port , NC, 230 V ac, 1/2in [E040B002E7A8A02]; 488-839
by Asco
0₫
Mã kho: 488839
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Supply Voltage | 230 V ac |
Number of Ports | 2 |
Operation | Direct |
Connection | 1/2 in Rp Female |
Connection Size | 1/2in |
Default Valve Position | NC |
Suitable Applications | Combustible Gas |
Type | 43863 |
Orifice Diameter | 19mm |
Body Material | Aluminium |
Maximum Working Pressure | 0.086 bar |
Operating Temperature Range | 0 → +60 °C |
Minimum Operating Temperature | 0°C |
Maximum Operating Temperature | +60°C |
Thread Standard or Connection Type | Rp |
Flow Factor Kv | 7m³/h |
Series | 40 |
Maximum Opening Time | 1s |
Connection Gender | Female |
Maximum Closing Time | 1s |
