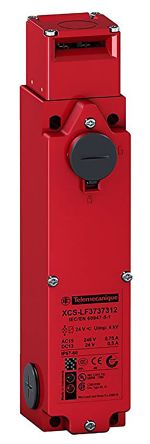

XCS-LF Solenoid Interlock Switch Power to Lock 24 V ac/dc [XCSLF3737512]; 133-0066
0₫
Mã kho: 1330066
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Range | Preventa |
Series | XCS-LF |
Pole Configuration | 3P |
Power to Lock / Unlock | Power to Lock |
Actuator Included | Yes |
Actuator Type | Key |
Conduit Entry | M20 |
Length | 44mm |
Width | 51mm |
Depth | 205mm |
Supply Voltage | 24 V ac/dc |
Maximum AC Voltage | 240V |
Housing Material | Zamak |
Standards Met | CSA, CSA C22.2 No. 14, EN 1088, EN/IEC 60204-1, EN/IEC 60529, EN/IEC 60947-5-1, EN/ISO 12100, ISO 14119, UL, UL 508 |
Dimensions | 44 x 51 x 205 mm |
Maximum DC Voltage | 24V |
Safety Contacts | 1NO/2NC |
IP Rating | IP66, IP67 |
