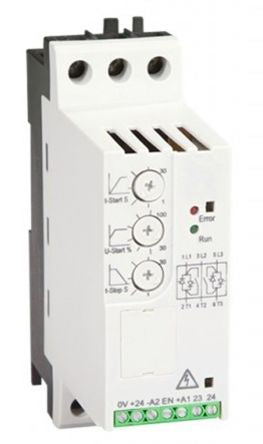

Fairford 14 A @ 460 V ac, 15.5 A @ 400 V ac Soft Starter, IP20, 7.5 kW @ 400 V ac, 230 → 460 V ac [PFE-16]; 136-3709
by Fairford
0₫
Mã kho: 1363709
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Phase | 3 |
| Supply Voltage | 230 → 460 V ac |
| Current Rating | 14 A @ 460 V ac, 15.5 A @ 400 V ac |
| Voltage Rating | 460 V ac |
| Control Voltage | 0 → 24 V dc |
| Power Rating | 7.5 kW @ 400 V ac |
| IP Rating | IP20 |
| Overall Length | 55mm |
| Overall Width | 120mm |
| Overall Depth | 165mm |
| Minimum Operating Temperature | 0°C |
| Maximum Operating Temperature | +40°C |
| Mounting Type | DIN Rail |
