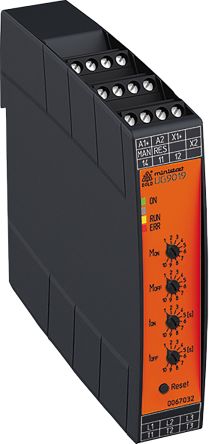

Softstarter With Softstop [UG9019.11/110/61 3AC200-480V 9A 1-10s UH=DC24V]; 181-2802
by Dold
0₫
Mã kho: 1812802
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Phase | 3 |
| Supply Voltage | 200 → 480 V ac |
| Current Rating | 0.375 |
| Voltage Rating | 480 V ac |
| Control Voltage | 24 V dc |
| Power Rating | 4 kW |
| IP Rating | IP20 (Terminal), IP40 (Housing) |
| Overall Length | 22.5mm |
| Overall Width | 120.3mm |
| Overall Depth | 105mm |
| Minimum Operating Temperature | 0°C |
| Maximum Operating Temperature | +60°C |
| Mounting Type | DIN Rail |
| Series | UG9019 |
