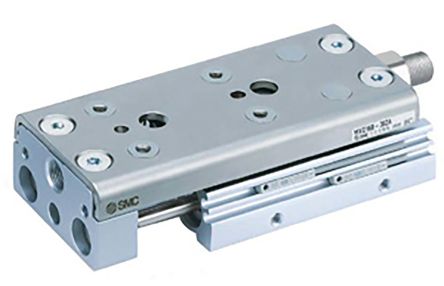

SMC Slide Unit Actuator Double Action, 12mm Bore, 40mm stroke [MXQ12B-40Z]; 124-4574
by SMC
0₫
Mã kho: 1244574
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Action | Double |
Bore | 12mm |
Stroke | 40mm |
Maximum Operating Pressure | 0.7 MPa |
Absolute Maximum Pressure | 1.05MPa |
Force at 7 bar | 119 (In) N, 158 (Out) N |
Cushioning Type | Rubber |
Port Connection | M5 x 0.8 |
Dimensions | 135.5 x 52 x 30mm |
Weight | 550g |
Height | 30mm |
Length | 135.5mm |
Width | 52mm |
Size Type | Standard |
Series | MXQB |
