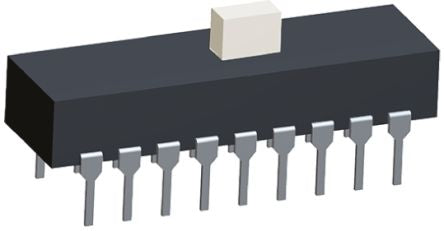

PCB Slide Switch Six Pole Double Throw (6PDT) Latching 300 mA @ 115 V ac Top [3-1825010-7]; 745-5205
0₫
Mã kho: 7455205
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Contact Configuration | Six Pole Double Throw (6PDT) |
Mounting Type | PCB |
Switch Operation | Latching |
Contact Current Rating | 300 mA @ 115 V ac |
Terminal Type | Through Hole |
Actuator Type | Top |
Contact Resistance | 40mΩ |
Mechanical Life | 15000Cycles |
Contact Material | Silver Plated Copper Alloy |
Maximum Operating Temperature | +80°C |
Minimum Operating Temperature | -40°C |
Operating Temperature Range | -40 → +80°C |
Actuator Material | Nylon |
