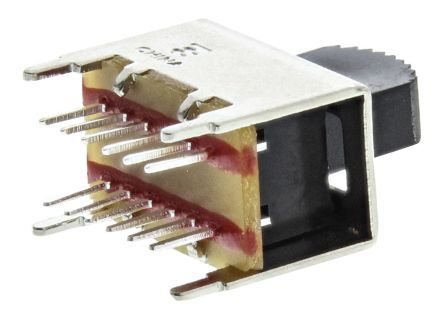

PCB Slide Switch Four Pole Double Throw (4PDT) Latching 300 mA @ 4 V dc Top [1825264-1]; 164-3527
0₫
Mã kho: 1643527
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Four Pole Double Throw (4PDT) |
| Mounting Type | PCB |
| Switch Operation | Latching |
| Contact Current Rating | 300 mA @ 4 V dc |
| Terminal Type | Through Hole |
| Actuator Type | Top |
| Contact Resistance | 30mΩ |
| Mechanical Life | 15000Cycles |
| Minimum Operating Temperature | -20°C |
| Operating Temperature Range | -20 → +85°C |
| Contact Material | Silver Plated Copper Alloy |
| Actuator Material | Polyoxymethylene |
| Maximum Operating Temperature | +85°C |
