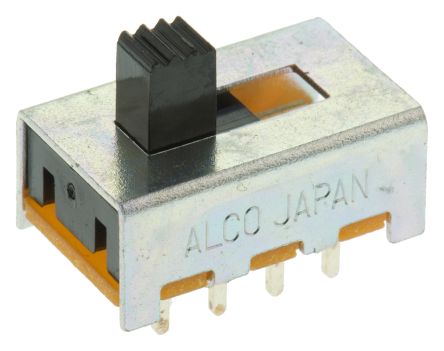

PCB Slide Switch DP3T 250 mA @ 125 V ac Slide [1825080-2]; 164-0723
0₫
Mã kho: 1640723
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Contact Configuration | DP3T |
Mounting Type | PCB |
Contact Current Rating | 250 mA @ 125 V ac |
Terminal Type | Through Hole |
Actuator Type | Slide |
Contact Resistance | 30mΩ |
Mechanical Life | 10000Operations |
Actuator Material | PBT |
Maximum Operating Temperature | +60°C |
Minimum Operating Temperature | -10°C |
Contact Material | Copper Alloy |
Operating Temperature Range | -10 → +60°C |
