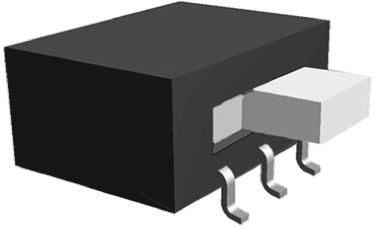

Surface Mount Slide Switch DPDT 300 mA @ 115 V ac Slide [1-1825010-0]; 164-8795
0₫
Mã kho: 1648795
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Contact Configuration | Double Pole Double Throw (DPDT) |
Mounting Type | Surface Mount |
Contact Current Rating | 300 mA @ 115 V ac |
Terminal Type | Surface Mount |
Actuator Type | Slide |
Contact Resistance | 40mΩ |
Mechanical Life | 15000Operations |
Maximum Operating Temperature | +80°C |
Contact Material | Silver |
Actuator Material | PET |
Operating Temperature Range | -40 → +80°C |
Minimum Operating Temperature | -40°C |
