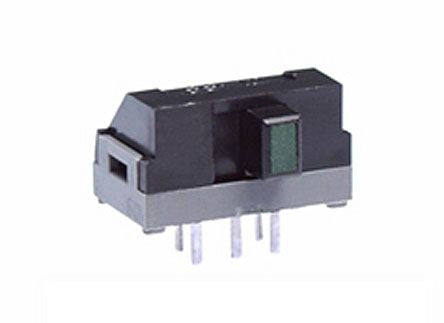

PCB Slide Switch Single Pole Double Throw (SPDT) Latching 100 mA Side [SS12SDH2LF]; 125-1861
by NKK Switches
0₫
Mã kho: 1251861
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Contact Configuration | Single Pole Double Throw (SPDT) |
Mounting Type | PCB |
Switch Operation | Latching |
Contact Current Rating | 100 mA |
Terminal Type | Solder |
Actuator Type | Side |
Length | 13mm |
Width | 10mm |
Depth | 7.5mm |
Dimensions | 13 x 10 x 7.5mm |
Contact Resistance | 20mΩ |
Actuator Material | Polyacetal |
Operating Temperature Range | -15 → +60°C |
Contact Material | Phosphor Bronze |
Minimum Operating Temperature | -15°C |
Maximum Operating Temperature | +60°C |
Voltage Rating | 30V dc |
