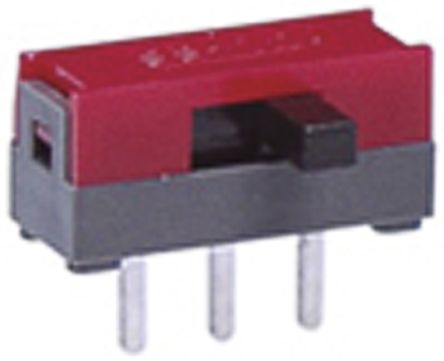

![NKK Switches SS-12SDH2 4289960](http://nguyenxuong.com/cdn/shop/products/R4289960-80_444x361.jpg?v=1594351722)
PCB Slide Switch Single Pole Double Throw (SPDT) Latching 100 mA @ 30 V dc Slide [SS-12SDH2]; 428-9960
by NKK Switches
0₫
Mã kho: 4289960
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Contact Configuration | Single Pole Double Throw (SPDT) |
Mounting Type | PCB |
Switch Operation | Latching |
Contact Current Rating | 100 mA @ 30 V dc |
Terminal Type | Through Hole |
Actuator Type | Slide |
Contact Resistance | 20mΩ |
Mechanical Life | 10000Operations |
Contact Material | Silver |
Actuator Material | Polyacetal |
Maximum Operating Temperature | +60°C |
Minimum Operating Temperature | -15°C |
Operating Temperature Range | -15 → +60°C |
