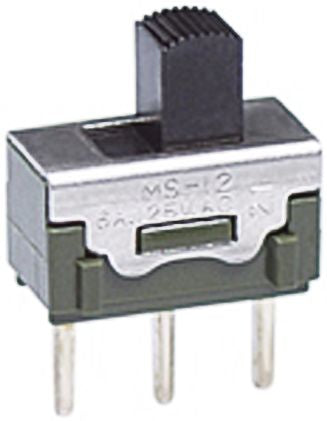

PCB Slide Switch Single Pole Double Throw (SPDT) Latching 3 A@ 250 V ac [MS-12AAP1]; 428-9774
by NKK Switches
0₫
Mã kho: 4289774
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Contact Configuration | Single Pole Double Throw (SPDT) |
Mounting Type | PCB |
Switch Operation | Latching |
Contact Current Rating | 3 A@ 250 V ac |
Terminal Type | Solder |
Contact Resistance | 10mΩ |
Mechanical Life | 100000Operations |
Maximum Operating Temperature | +85°C |
Operating Temperature Range | -30 → +85°C |
Contact Material | Silver |
Minimum Operating Temperature | -30°C |
Actuator Material | Glass Fibre Reinforced PBT Resin |
