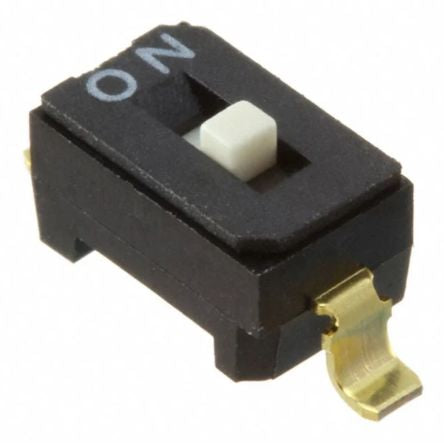

![Copal Electronics CFS-0102MB 1968174](http://nguyenxuong.com/cdn/shop/products/Y1968174-01_444x444.jpg?v=1594115492)
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Contact Configuration | Single Pole Single Throw (SPST) |
Mounting Type | Surface Mount |
Contact Current Rating | 100mA |
Terminal Type | Gull Wing |
Actuator Type | Slide |
Length | 10mm |
Width | 3.95mm |
Depth | 4.3mm |
Dimensions | 10mm x 3.95mm x 4.3mm |
Contact Resistance | 50mΩ |
Mechanical Life | 1000Operations |
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | +85°C |
Contact Material | Copper Alloy, Gold Plated |
Operating Temperature Range | -40 → +85°C |
Voltage Rating | 6V |
