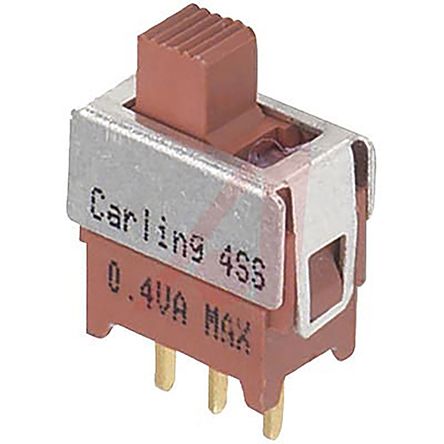

![Carling Technologies 4S1-FSP1-M2RE 8798427](http://nguyenxuong.com/cdn/shop/products/R8798427-01_444x444.jpg?v=1594053233)
PCB Slide Switch Single Pole Single Throw (SPST) Latching 100 (Contact) mA Slide [4S1-FSP1-M2RE]; 879-8427
0₫
Mã kho: 8798427
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Contact Configuration | Single Pole Single Throw (SPST) |
Mounting Type | PCB |
Switch Operation | Latching |
Contact Current Rating | 100 (Contact) mA |
Terminal Type | Pc Pin |
Actuator Type | Slide |
Length | 10.2mm |
Width | 5.1mm |
Depth | 10.15mm |
Dimensions | 10.2 x 5.1 x 10.15mm |
Contact Resistance | 10mΩ |
Maximum Operating Temperature | +85°C |
Voltage Rating | 20V ac/dc |
Operating Temperature Range | -30 → +85°C |
Minimum Operating Temperature | -30°C |
Actuator Material | Nylon |
Contact Material | Copper Alloy |
