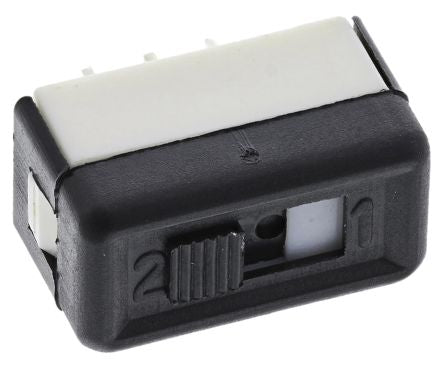

PCB Slide Switch Single Pole Double Throw (SPDT) Latching 4 A @ 125 V ac Slide [25136NAB]; 692-6242
by APEM
0₫
Mã kho: 6926242
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Single Pole Double Throw (SPDT) |
| Mounting Type | PCB |
| Switch Operation | Latching |
| Contact Current Rating | 4 A @ 125 V ac |
| Terminal Type | Through Hole |
| Actuator Type | Slide |
| Contact Resistance | 10mΩ |
| Mechanical Life | 20000Operations |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -40°C |
| Contact Material | Silver |
| Operating Temperature Range | -40 → +85°C |
| Actuator Material | Glass Fibre Reinforced PA |
