![Alps Alpine SSSU041700 1238966](http://nguyenxuong.com/cdn/shop/products/R1238966-01_444x269.jpg?v=1594250546)

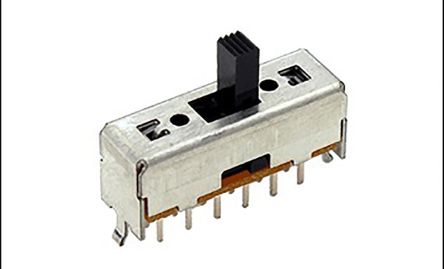

Through Hole Slide Switch Four Pole Double Throw (4PDT) Latching 100 mA Slide [SSSU041700]; 123-8966
by Alps Alpine
0₫
Mã kho: 1238966
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Contact Configuration | Four Pole Double Throw (4PDT) |
Mounting Type | Through Hole |
Switch Operation | Latching |
Contact Current Rating | 100 mA |
Actuator Type | Slide |
Length | 21.5mm |
Width | 7mm |
Depth | 14.5mm |
Dimensions | 21.5 x 7 x 14.5mm |
Contact Resistance | 25 (Initial) mΩ, 65 (After Lifetime) mΩ |
Maximum Operating Temperature | +85°C |
Operating Temperature Range | -40 → +85°C |
Voltage Rating | 30V dc |
Minimum Operating Temperature | -40°C |
