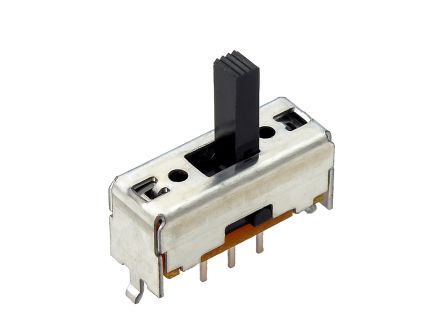

Through Hole Slide Switch Double Pole Double Throw (DPDT) Latching 100 mA Slide [SSSU022800]; 123-8963
by Alps Alpine
0₫
Mã kho: 1238963
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Contact Configuration | Double Pole Double Throw (DPDT) |
Mounting Type | Through Hole |
Switch Operation | Latching |
Contact Current Rating | 100 mA |
Actuator Type | Slide |
Length | 18.5mm |
Width | 7mm |
Depth | 17.5mm |
Dimensions | 18.5 x 7 x 17.5mm |
Contact Resistance | 25 (Initial) mΩ, 65 (After Lifetime) mΩ |
Maximum Operating Temperature | +85°C |
Operating Temperature Range | -40 → +85°C |
Voltage Rating | 30V dc |
Minimum Operating Temperature | -40°C |
