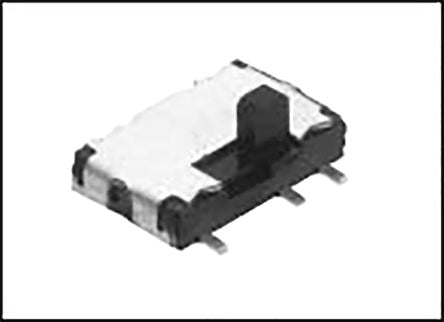

Surface Mount Slide Switch Double Pole Double Throw (DPDT) Latching 300 mA Slide [SSSS820101]; 123-8934
by Alps Alpine
0₫
Mã kho: 1238934
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Contact Configuration | Double Pole Double Throw (DPDT) |
Mounting Type | Surface Mount |
Switch Operation | Latching |
Contact Current Rating | 300 mA |
Terminal Type | Solder |
Actuator Type | Slide |
Length | 6.7mm |
Width | 4.1mm |
Depth | 3.4mm |
Dimensions | 6.7 x 4.1 x 3.4mm |
Contact Resistance | 70 (Initial) mΩ, 130 (After Lifetime) mΩ |
Maximum Operating Temperature | +85°C |
Operating Temperature Range | -40 → +85°C |
Minimum Operating Temperature | -40°C |
Voltage Rating | 5V dc |
