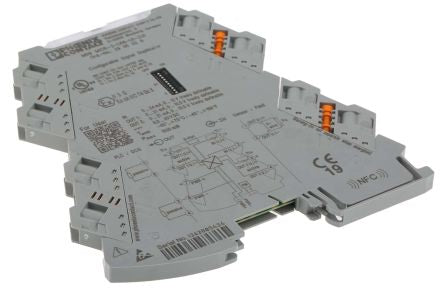

Phoenix Contact MINI MCR-2-UNI-UI-2UI, Signal Duplicator Signal Conditioner, Current, Voltage ATEX, [2905026]; 134-8669
0₫
Mã kho: 1348669
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Input Range | 0 → 12 V, 0 → 24 mA |
| Output Range | 0 → 10.5 V, 0 → 21 mA |
| Supply Voltage | 24 V dc |
| Mounting Type | DIN Rail |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +70°C |
| Series | MINI MCR-2-UNI-UI-2UI |
| Standards Met | CUL, CULus, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-6-4, IEC 61010-1, UL |
| Hazardous Area Certification | ATEX |
| Operating Temperature Range | -40 → +70 °C |
| Number of Channels | 1 |
| Termination | Screw |
