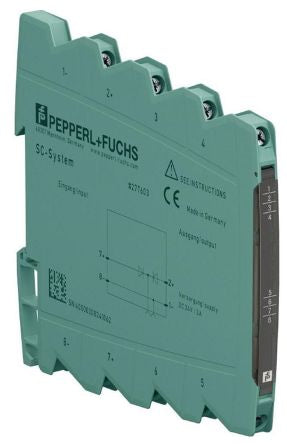

Pepperl + Fuchs SC-System, Rotation Speed Monitor Signal Conditioner, Digital, 2 mA, 24 V dc Output [S1SD-1Fi-1R]; 134-8124
0₫
Mã kho: 1348124
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Input Range | <3 (Function Input) V, 0.15 → 2 (S0 Sensor) mA, 1.2 → 2.1 (Mechanical Contact) mA, 1.2 → 2.1 (NAMUR Sensor ) mA, 1.2 → 2.1 (SN Sensor) mA, 3 → 5 (NPN Sensor) V, 4 → 6 (2-Wire DC Sensor) V, 8 → 10 (Mechanical Contact) V, 8 → 10 (PNP Sensor) V, 150 → 400 (AC Source) mV |
| Output Range | 2 mA, 24 V dc |
| Supply Voltage | 16.8 → 31.2 V dc |
| Mounting Type | DIN Rail |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +70°C |
| Operating Temperature Range | -25 → +70 °C |
| Number of Channels | 1 |
| Termination | Screw |
| Standards Met | CE, EN 61010-1:2010, EN 61326-1:2013, IEC 60529:2001 |
| Series | SC-System |
