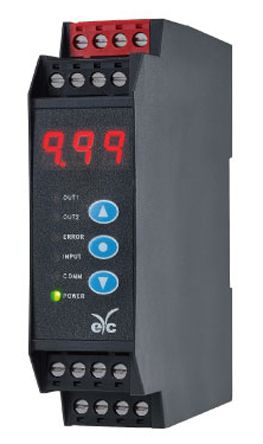

EYC Analogue to Analogue Signal Conditioner, Current, Linear Resistance, Potentiometer, RTD, Thermocouple, Voltage [DPT02-B]; 144-1338
by EYC
0₫
Mã kho: 1441338
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Input Range | 0 → 1 (Voltage) V, 0 → 10 (Linear Resistance) kΩ, 0 → 10 (Voltage) V, 0 → 20 (Current) mA, 0 → 5 (Voltage) V, 0.2 → 1 (Voltage) V, 1 → 5 (Voltage) V, 2 → 10 (Voltage) V, 4 → 20 (Current) mA, 10 → 100 (Potentiometer) kΩ |
| Output Range | 0 → 1 (Voltage) V, 0 → 10 (Voltage) V, 0 → 5 (Voltage) V, 0.2 → 1 (Voltage) V, 1 → 0 (Voltage) V, 1 → 0.2 (Voltage) V, 1 → 5 (Voltage) V, 2 → 10 (Voltage) V, 5 → 0 (Voltage) V, 5 → 1 (Voltage) V, 10 → 0 (Voltage) V, 10 → 2 (Voltage) V |
| Supply Voltage | 85 → 253 V ac |
| Mounting Type | DIN Rail |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | +60°C |
| Standards Met | CE, CISPR11:2009+A1:2010 Group 1 Class B, EN 61000-3, EN 61326-1, IEC 61000-4 |
| Number of Channels | 2 |
| Termination | Screw |
| Operating Temperature Range | -10 → +60 °C |
