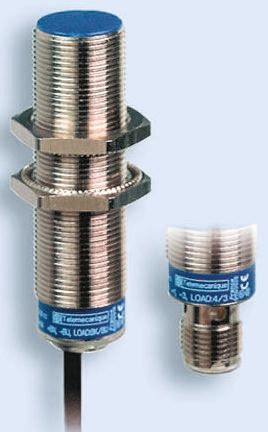

Telemecanique Sensors, M18 x 1, PNP-NC Inductive Sensor 62mm Length, 12 → 48 V dc supply voltage , IP69K Rating [XS618B1PBL2]; 198-368
0₫
Mã kho: 198368
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Barrel |
| Thread Size | M18 x 1 |
| Output Type | PNP-NC |
| Detection Range | 8 mm |
| Terminal Type | Cable |
| Supply Voltage | 12 → 48 V dc |
| Length | 62mm |
| Maximum DC Voltage | 58V |
| Mounting Type | Flush Mount |
| Switching Current | 200 mA |
| IP Rating | IP69K |
| Housing Material | Nickel Plated Brass |
| Maximum Switching Frequency | 1kHz |
| Short Circuit Overload Protection | Yes |
| Minimum Operating Temperature | -25°C |
| Reverse Polarity Protection | Yes |
| Maximum Operating Temperature | +70°C |
