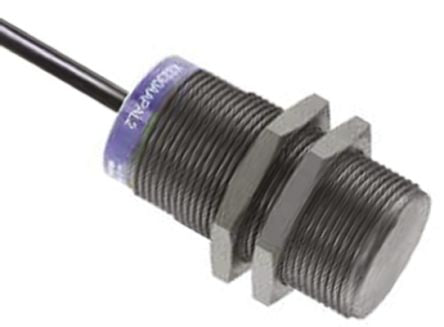

Telemecanique Sensors, M30 x 1.5, NPN-NO Inductive Sensor 60mm Length, 12 → 48 V dc supply voltage [XS230AANAL2]; 181-708
0₫
Mã kho: 181708
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Barrel |
| Thread Size | M30 x 1.5 |
| Output Type | NPN-NO |
| Detection Range | 22 mm |
| Terminal Type | Cable |
| Supply Voltage | 12 → 48 V dc |
| Length | 60mm |
| Maximum DC Voltage | 58V |
| Mounting Type | Non Flush |
| Switching Current | 200 mA |
| IP Rating | IP69K |
| Housing Material | PPS |
| Maximum Operating Temperature | +85°C |
| Short Circuit Overload Protection | Yes |
| Maximum Switching Frequency | 500Hz |
| Minimum Operating Temperature | -25°C |
