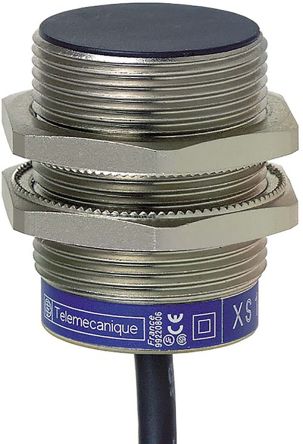

Telemecanique Sensors, M30 x 1.5, PNP-NO/NC Inductive Sensor 45mm Length, 12 → 24 V dc supply voltage [XS1N30PC410L2]; 123-8638
0₫
Mã kho: 1238638
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Barrel |
| Thread Size | M30 x 1.5 |
| Output Type | PNP-NO/NC |
| Detection Range | 10 mm |
| Terminal Type | Cable |
| Supply Voltage | 12 → 24 V dc |
| Length | 45mm |
| Maximum DC Voltage | 24V |
| Mounting Type | Flush Mount |
| IP Rating | IP68 |
| Switching Current | ≤200 mA |
| Housing Material | Brass |
| Shielding | Unshielded |
| Minimum Operating Temperature | -25°C |
| Short Circuit Overload Protection | Yes |
| Maximum Switching Frequency | 1kHz |
| Reverse Polarity Protection | Yes |
| Maximum Operating Temperature | +70°C |
| Standards Met | CE, CSA, E2, UL |
