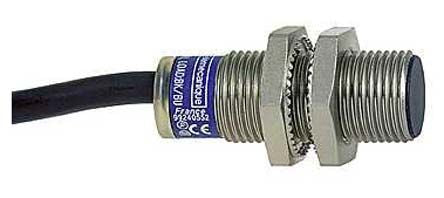

Telemecanique Sensors, M12 x 1, PNP-NO/NC Inductive Sensor 37mm Length, 12 → 24 V dc supply voltage [XS1N12PC410]; 133-6318
0₫
Mã kho: 1336318
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Barrel |
| Thread Size | M12 x 1 |
| Output Type | PNP-NO/NC |
| Detection Range | 2 mm |
| Terminal Type | Cable |
| Supply Voltage | 12 → 24 V dc |
| Length | 37mm |
| Maximum DC Voltage | 24V |
| Mounting Type | Flush Mount |
| Switching Current | ≤200 mA |
| IP Rating | IP67, IP68 |
| Housing Material | Nickel Plated Brass |
| Short Circuit Overload Protection | Yes |
| Minimum Operating Temperature | -25°C |
| Shielding | Unshielded |
| Maximum Switching Frequency | 5kHz |
| Reverse Polarity Protection | Yes |
| Maximum Operating Temperature | +70°C |
| Standards Met | CE, CSA, E2, EN/IEC 61508, EN/ISO 13849-1, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, UL |
