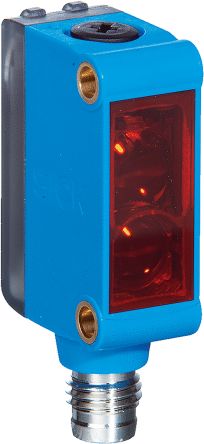

Sick Background Suppression Photoelectric Sensor 5 → 250 mm Detection Range PNP IP67 Miniature Style GTB6-P4211 [GTB6-P4211]; 180-6372
by Sick
0₫
Mã kho: 1806372
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Sensor Style | Block |
| Detection Type | Background Suppression |
| Detection Range | 5 → 250 mm |
| Output Type | PNP |
| Electrical Connection | 4-Pin M8 Connector |
| Maximum DC Voltage | 30V |
| Terminal Type | M8 Male 4-pin Connector |
| Light Source | LED |
| IP Rating | IP67 |
| Maximum Current | 100 mA |
| Response Time | <625 μs |
| Housing Material | ABS, PC, Plastic |
| Series | G6 |
| Standards Met | CE Certified, CULus Recognized, UL NRKH.E348498, UL NRKH7.E348498 |
| Mounting Type | Panel Mount |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +55°C |
