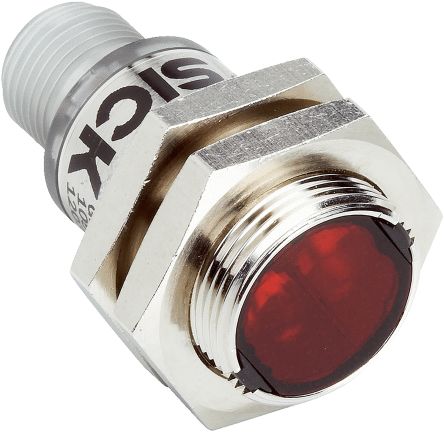

Sick Through Beam Photoelectric Sensor 0 → 10 m Detection Range PNP IP67 1069125 [1069125]; 184-6308
by Sick
0₫
Mã kho: 1846308
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Sensor Style | Cylindrical |
| Detection Type | Through Beam |
| Detection Range | 0 → 10 m |
| Output Type | PNP |
| Electrical Connection | M12-4 Pin Connector |
| Maximum DC Voltage | 30V |
| Terminal Type | M12 |
| Light Source | LED |
| IP Rating | IP67 |
| Maximum Current | 30 mA |
| Response Time | <500 μs |
| Housing Material | ABS, Brass, Metal |
| Minimum Operating Temperature | -25°C |
| Mounting Type | Threaded |
| Maximum Operating Temperature | +55°C |
| Standards Met | CE Certified, CULus Listed |
| Series | GR18S |
