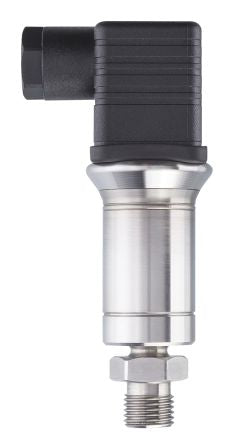

RS PRO Absolute for Oil, Water Pressure Sensor, 500mbar Max Pressure Reading , 9 → 32 V dc, BSP 1/4, IP65; 828-5690
by RS PRO
0₫
Mã kho: 8285690
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Pressure Reading Type | Absolute |
| Minimum Pressure Reading | 0bar |
| Maximum Pressure Reading | 500mbar |
| Accuracy | ±0.5 % |
| Output Type | Current |
| Media Measured | Oil, Water |
| Process Connection | G1/4 |
| Electrical Connection | DIN 43650 Type A |
| Analogue Output | 4 → 20 mA |
| Maximum Current | 28 mA |
| Supply Voltage | 9 → 32 V dc |
| Housing Material | Stainless Steel |
| IP Rating | IP65 |
| Mounting Type | Threaded |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -20°C |
