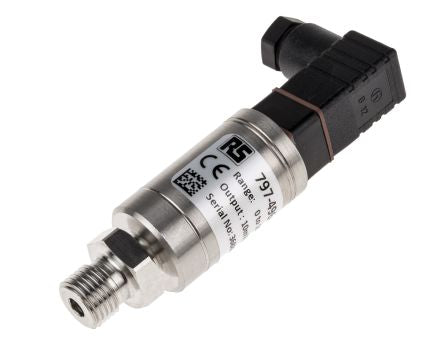

RS PRO Gauge for Air, Gas, Hydraulic Fluid, Liquid, Water Pressure Sensor, 16bar Max Pressure Reading , 3 → 12 V; 797-4964
by RS PRO
0₫
Mã kho: 7974964
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Pressure Reading Type | Relative |
| Minimum Pressure Reading | 0bar |
| Maximum Pressure Reading | 16bar |
| Accuracy | ±0.25 % |
| Output Type | Voltage |
| Media Measured | Air, Gas, Hydraulic Fluid, Liquid, Water |
| Process Connection | G1/4 |
| Electrical Connection | DIN 43650 Type C |
| Analogue Output | 0 → 100 mV |
| Supply Voltage | 3 → 12 V dc |
| Housing Material | Stainless Steel |
| IP Rating | IP65 |
| Minimum Operating Temperature | -20°C |
| Minimum Pressure Setting | -1bar |
| Mounting Type | Threaded |
| Maximum Pressure Setting | 400bar |
| Maximum Operating Temperature | +135°C |
