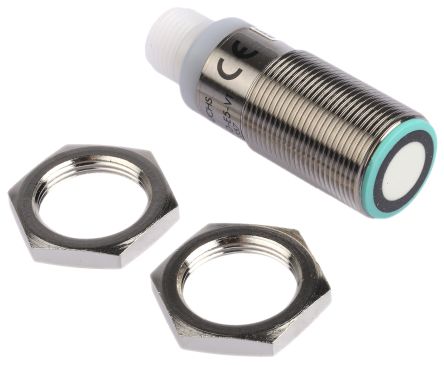

Pepperl + Fuchs Ultrasonic Sensor Barrel M18 x 1, 30 → 300 mm, PNP, 4-Pin M12 Connector IP67 [UB300-18GM40-E5-V1]; 510-3700
0₫
Mã kho: 5103700
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Detection Range | 30 → 300 mm |
| Output Type | PNP-NO/NC |
| Body Style | Barrel |
| Thread Size | M18 x 1 |
| Transducer Frequency | 390kHz |
| Maximum DC Voltage | 30V |
| Supply Voltage | 10 → 30 V dc |
| Terminal Type | M12 - 4 Pin |
| IP Rating | IP67 |
| Housing Material | Nickel Plated Brass |
| Short Circuit Overload Protection | Yes |
| Dimensions | 50.2 x 18 mm |
| Maximum Operating Temperature | +70°C |
| Length | 50.2mm |
| Switching Frequency | ≤13 Hz |
| Minimum Operating Temperature | -25°C |
| Switching Current | 200 mA |
