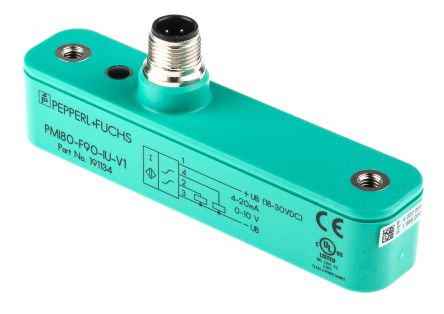

Pepperl + Fuchs Analogue Inductive Sensor 102mm Length, 18 → 30 V dc supply voltage , IP67 Rating [PMI80-F90-IU-V1]; 814-0187
0₫
Mã kho: 8140187
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Block |
| Output Type | 0-10 V, 0-20 mA, Analogue |
| Detection Range | 23 mm |
| Terminal Type | M12 - 4 Pin |
| Supply Voltage | 18 → 30 V dc |
| Length | 102mm |
| Width | 23mm |
| Depth | 41mm |
| Maximum DC Voltage | 30V |
| Mounting Type | Flush Mount |
| IP Rating | IP67 |
| Housing Material | ABS |
| Maximum Operating Temperature | +70°C |
| Minimum Operating Temperature | -25°C |
| Reverse Polarity Protection | Yes |
