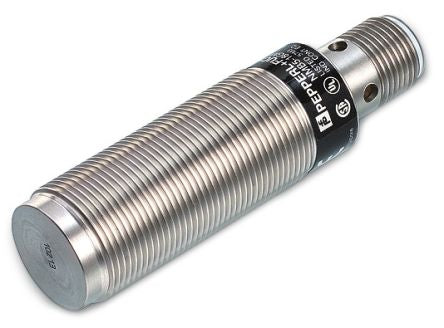

Pepperl + Fuchs, M18 x 1, PNP-NO Inductive Sensor 65mm Length, 10 → 30 V dc supply voltage [NMB10-18GM65-E2-V1]; 800-7573
0₫
Mã kho: 8007573
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Barrel |
| Thread Size | M18 x 1 |
| Output Type | PNP-NO |
| Detection Range | 10 mm |
| Terminal Type | M12 - 4 Pin |
| Supply Voltage | 10 → 30 V dc |
| Length | 65mm |
| Maximum DC Voltage | 30V |
| Mounting Type | Flush Mount |
| IP Rating | IP67, IP68, IP69K |
| Housing Material | Stainless Steel |
| Maximum Operating Temperature | +70°C |
| Minimum Operating Temperature | -25°C |
| Maximum Switching Frequency | 240Hz |
| Reverse Polarity Protection | Yes |
| Short Circuit Overload Protection | Yes |
| Shielding | Unshielded |
