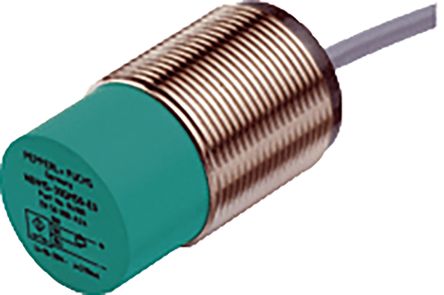

Pepperl + Fuchs, M30, PNP Inductive Sensor 50mm Length, 10 → 30 V supply voltage , IP67 Rating [NBN25-30GM50-E2]; 184-8811
0₫
Mã kho: 1848811
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Barrel |
| Thread Size | M30 x 1.5 |
| Output Type | PNP-NO |
| Detection Range | 25 mm |
| Terminal Type | Cable |
| Supply Voltage | 10 → 30 V dc |
| Length | 50mm |
| Mounting Type | Non Flush |
| IP Rating | IP67 |
| Switching Current | 200 mA |
| Housing Material | Brass |
| Short Circuit Overload Protection | Yes |
| Minimum Operating Temperature | -25°C |
| Maximum Switching Frequency | 200Hz |
| Reverse Polarity Protection | Yes |
| Standards Met | CCC Certified, CCSAus Listed, CE Certified, CULus Listed, EN 60947-5-2, IEC 60947-5-2 |
| Maximum Operating Temperature | +70°C |
