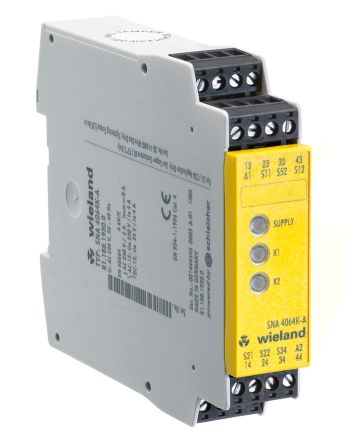

Wieland 24 V ac/dc Safety Relay Dual Channel With 3 Safety Contacts and 1 Auxilary Contact [R1.188.1440.0]; 122-2498
by Wieland
0₫
Mã kho: 1222498
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 24 V ac/dc |
| Number of Channels | 2 |
| Auxiliary Contacts | 1 |
| Function | Elevator System, Emergency Stop, Light Beam/Curtain, Safety Switch/Interlock |
| Safety Contacts | 3 |
| Range | SafeRELAY |
| Reset Method | Manual, Monitored |
| Terminal Type | Screw |
| Standards Met | CCC, CULus, EN 50156-1, EN 61511, EN 62061, EN 81-1, EN ISO 13849-1, GL, GOST R, TUV |
| Width | 114mm |
| Length | 22.5mm |
| Depth | 96.5mm |
